PLS 380W bsw + zoom moving head

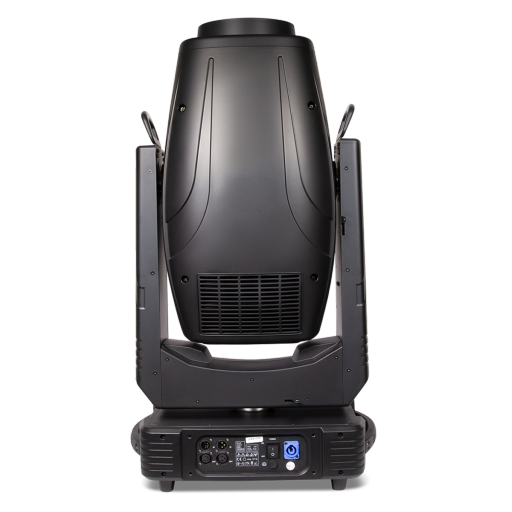

PLS 380W BSW + Zoom Moving Head

The PLS 380W BSW + Zoom Moving Head is a versatile and powerful lighting fixture ideal for professional stage performances and events. Featuring a robust 380W Philips MSD Silver light source with a lifespan of over 1500 hours and a color temperature of 7650K, it delivers bright and consistent illumination. The fixture operates on an input voltage range of 100-240V at 50/60Hz with a total power consumption of 600W.

Designed for maximum flexibility, the PLS 380W BSW + Zoom Moving Head includes a color disc with 13 fixed colors plus white, offering half-color effects and a bidirectional rainbow effect. Its pattern capabilities are extensive, featuring a fixed pattern disc with 12 patterns plus white and a rotating pattern disc with 8 patterns plus white, both equipped with pattern jitter and arbitrary positioning functions.

The fixture supports seamless 0-100% linear dimming and a high-speed strobe effect of up to 25Hz, with options for random or pulse strobing. It also includes two prism discs (8 prisms + 24 prisms) that can rotate in both directions and stack to create dynamic beam effects. An independent atomization system ensures a soft light effect for added versatility.

With a 540° X-axis and a 270° Y-axis running angle, the PLS 380W BSW + Zoom Moving Head offers precise 16-bit scanning and an automatic error correction reset function, ensuring reliable and quiet operation. It is suitable for use in environments ranging from -10 to 45℃ and features a three-core XLR socket for signal input/output, with an IP20 protection level.

Control is facilitated through DMX512 and RDM protocols, with the ability to upgrade via DMA or data cable. The fixture offers 16/20 international standard DMX channels, allowing for comprehensive customization and control from the console, including the ability to change the lamp address code and reset the machine.

Overall, the PLS 380W BSW + Zoom Moving Head is a high-performance, reliable lighting fixture that delivers exceptional and dynamic lighting effects, making it an excellent choice for professional lighting designers and technicians.
