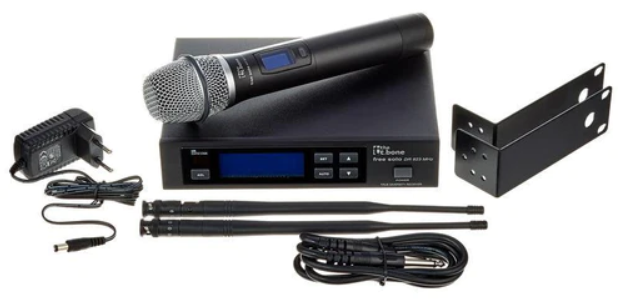

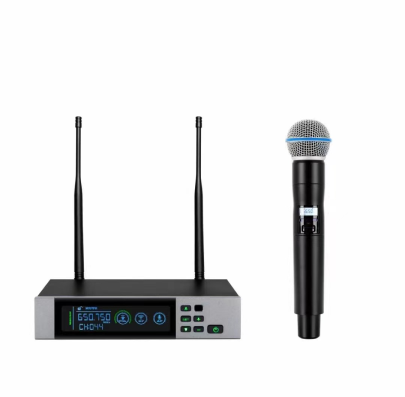

PLS HAND C/L SINGLE UHF

PLS HAND C/L Single UHF

This is a cutting-edge wireless microphone system designed to meet the demands of professional audio applications. Encased in a standard U-shaped housing, this microphone features advanced specifications that ensure top-notch performance. Operating on a one-drag-one wireless true diversity reception system, it guarantees reliable and interference-free signal transmission. The carrier frequency band spans from 640 to 690MHz, with the flexibility for customization to accommodate other frequency bands. Utilizing broadband modulation and a phase-locked frequency synthesizer, the microphone achieves an impressive operational distance of 300 meters, making it suitable for a wide range of venues and applications.

The sensitivity, with an offset of 25kHz and an output of 6dBuV, ensures a signal-to-noise ratio exceeding 60dB, indicating high-quality audio capture. With a ±45kHz offset, 24MHz bandwidth, and a comprehensive signal-to-noise ratio surpassing 100dB, this microphone provides a remarkable audio experience. The total harmonic distortion is kept minimal, measuring less than 0.5% at 1kHz, while the comprehensive frequency response spans from 50Hz to 18kHz ±3dB. The balanced and unbalanced output options, through XLR and 6.3mm sockets, offer flexibility in connecting to various audio systems. Additionally, the microphone operates within a temperature range of -10℃ to +55℃ and requires an AC power supply of 0.5-1A at 12-15VDC, ensuring its reliability in diverse environmental conditions.

With its state-of-the-art features and robust design, the PLS HAND C/L SINGLE UHF microphone system is an excellent choice for professional audio setups, including live performances, broadcasting, and recording studios. Its comprehensive specifications, customizable frequency bands, and reliable signal transmission make it a versatile and indispensable tool for audio professionals seeking high-performance wireless microphone solutions.
